Victaulic

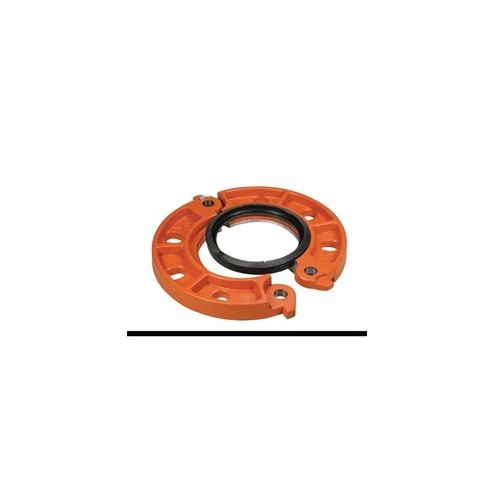

VICTAULIC FLANGE ADAPTOR S741/PN10-2 1/2"
The Victaulic Style S/741 flange adaptor (2 1/2") is a grooved-to-flanged transition fitting that connects grooved piping systems to PN10 (or ANSI Class 125/150 equivalent) flanged equipment. Engineered with a durable ductile iron body and effective gasket seal, it’s ideal for HVAC, fire protection, and industrial applications requiring reliable grooved to flange connections.
€153,60
€153,61
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Manufacturer | Victaulic |
| Series / Model | S/741 Flange Adaptor |
| Nominal Size | 2 1/2" |
| Connection Type | Grooved → Flanged (PN10 / ANSI Class 125/150) |
| Body Material | Ductile Iron |
| Gasket Material | EPDM (standard) |
| Maximum Working Pressure | Up to approx. 300 psi (varies by pipe and gasket) |
| Temperature Range | Approx. -34 °C to +110 °C (standard EPDM) |
| Installation | Grooved end into pipe; flanged end bolted to mating flange |
| Applications | HVAC, fire protection, industrial piping |
