Victaulic

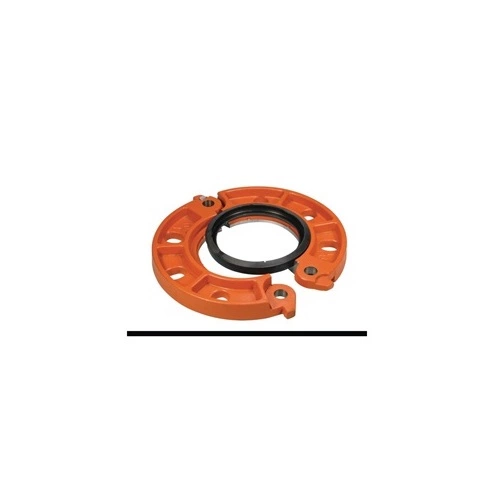

VICTAULIC FLANGE ADAPTOR S741/PN10-2"
The Victaulic Style S/741 flange adaptor (2") is a grooved-to-flanged transition fitting that connects grooved piping systems to PN10 (or ANSI Class 125/150 equivalent) flanged components. Constructed with a durable ductile iron body and reliable gasket, it supports quick mechanical installation for HVAC, fire protection, and industrial piping applications.
€138,27
€138,28
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Manufacturer | Victaulic |
| Series / Model | S/741 Flange Adaptor |
| Nominal Size | 2" |
| Connection Type | Grooved → Flanged (PN10 / ANSI Class 125/150) |
| Body Material | Ductile Iron |
| Gasket Material | EPDM (standard) |
| Maximum Working Pressure | Up to approx. 300 psi (depends on pipe and gasket) |
| Temperature Range | Approx. -34 °C to +110 °C (standard EPDM) |
| Installation | Grooved end into pipe; flange end bolted to mating flange |
| Applications | HVAC, fire protection, industrial piping systems |
