Victaulic

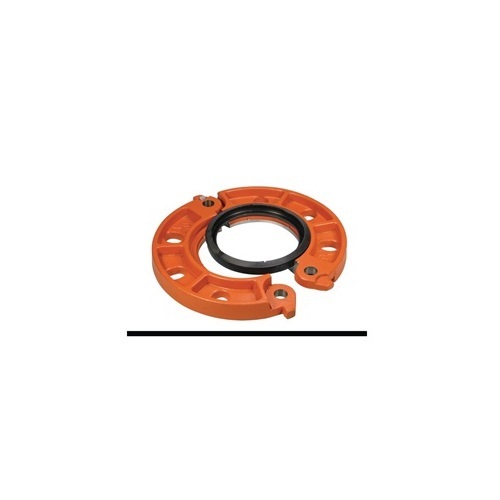

VICTAULIC FLANGE ADAPTOR S741/PN10-6"
The Victaulic Style S/741 flange adaptor (6") is a grooved-to-flanged transition fitting engineered to connect grooved piping systems to PN10 (or ANSI Class 125/150 equivalent) flanged components. Featuring a robust ductile iron body and dependable gasket sealing, it delivers secure mechanical connections for HVAC, industrial, and fire protection applications.
€158,66
€158,67
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Manufacturer | Victaulic |
| Series / Model | S/741 Flange Adaptor |
| Nominal Size | 6" |
| Connection Type | Grooved → Flanged (PN10 / ANSI Class 125/150) |
| Body Material | Ductile Iron |
| Gasket Material | EPDM (standard) |
| Maximum Working Pressure | Up to approx. 300 psi (depends on pipe, gasket, and system conditions) |
| Temperature Range | Approx. -34 °C to +110 °C (standard EPDM) |
| Installation | Grooved end into pipe; flange end bolted to mating flange |
| Applications | HVAC, fire protection, industrial piping systems |
