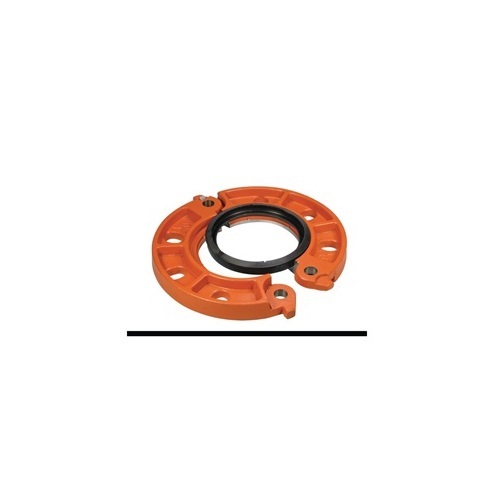

VICTAULIC FLANGE ADAPTOR S741/PN10-8"
The Victaulic Style S/741 flange adaptor (8") is a grooved-to-flanged transition fitting designed to connect grooved piping systems to PN10 (or ANSI Class 125/150 equivalent) flanged components. Built with a rugged ductile iron body and reliable gasket sealing, it provides a secure mechanical connection suitable for HVAC, fire protection, and industrial piping applications.
€238,89
€238,90
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Manufacturer | Victaulic |
| Series / Model | S/741 Flange Adaptor |
| Nominal Size | 8" |
| Connection Type | Grooved → Flanged (PN10 / ANSI Class 125/150) |
| Body Material | Ductile Iron |
| Gasket Material | EPDM (standard) |
| Maximum Working Pressure | Up to approx. 300 psi (depends on pipe, gasket, and system conditions) |
| Temperature Range | Approx. -34 °C to +110 °C (standard EPDM) |
| Installation | Grooved end into pipe; flange end bolted to mating flange |
| Applications | HVAC, fire protection, industrial piping systems |
